The brand, quantity of parts , function, control system , overall standard of BE, LE and GE series are different, so are the costs.
Description Relevant Technical Parameter of BE Series Ethylene Oxide Sterilizer.

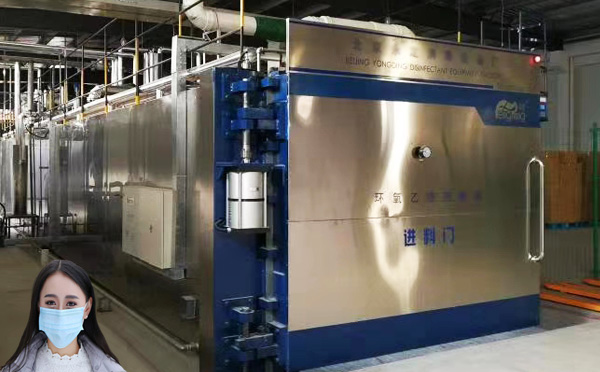

BE Series Ethylene Oxide Sterilizer
system design standard: YY-0503-2005 / ISO11135-2014
body
（main part）
- 1. cabinet：stainless steel SUS304，δ=6mm
- 2. water jacket: U-bar carbon steel
- 5. housing：U-bar carbon steel with painting
- 4. foot ：U- bar steel 14#/Q235
- 5. foot support ：steel sheet 10/Q235
- 6. insulating layer ：ceramic fiber
door
（mian part）
- 1. door ：stainless steel : SUS304，δ=6mm
- 2. door frame：rectangular steel 120*60/Q235
- 3. door water Jacket： U- bar carbon steel
- 4. door seal flange ：carbon Steel
- 5. housing：U-bar carbon steel with painting
- 6. insulating layer：ceramic fiber
heating components
(main part)
- 1. frame：angle steel 50×50×3
- 2. heating water tank ：stainless steel
- 3. housing of water tank：U-bar carbon steel with powder painting
- 4. electronic heater: stainless steel electrical heating pipe
EO vaporizer
- 1. vaporizer liner：stainless steel
- 2. EO coil pipe：stainless steel pipe SUS304
- 3. vaporizer housing：U-bar carbon steel with powder painting
- 4. insulating layer：fireproof aluminium silicate fiber blanket
EO feeding device
- pressure gage, mannual valve
- heating pipe: 3*3kw/AC380V 3P
- vaccum pump: 1.45kw/AC380V 3P 50HZ
- vaporization pump: AC220V/200W 2P 50HZ
- safety valve: 0.15Mpa
- steam generator: 3KW/AC380V 50HZ
- air compressor: 1.5Kw/AC380V 3P 50HZ
- magnetic valve: DC24V
- pneumatic valve"humidifying valve: 20mm screwed fitting ,
- vacuum valve ：1inch screwed fitting
- Feeding EO valve：20mm screwed fitting
- Feeding N2 valve：20mm screwed fitting
- air release valve：1 inch screwed fitting
- steam heating valve:20mm screwed fitting
EO electric scale
- 1. range ：100Kg；
- 2. material ：stainless steel；
- 3. support RS485 communication function；
temperature sensor
output form：PT100；
range：-50~100℃
pressure sensor
output form：4~20mA
voltage ：DC24V
range：-0.1~+0.15Mpa
humidity sensor
output form：4~20mA
voltage ：DC24V
range ：0~100%RH
control cabinet
- integrated work statio BGIB1-EO1
- control module: SIEMENS S7200 PLC/SMART
- screen: WENVIEW 10.4’
- IPC(Industrial Personnal Computer): No
- screen: No
- printer: No
- UPS: No

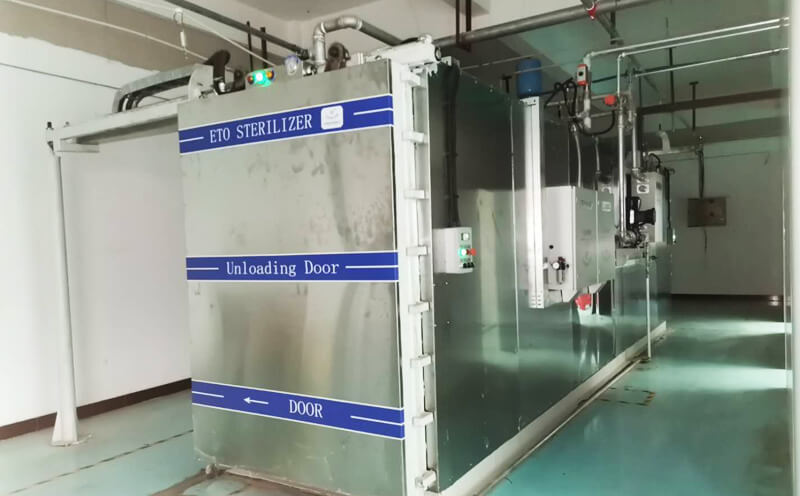

system design of BE Series Ethylene Oxide Sterilizer
system design standard: YY-0503-2005 / ISO11135-2014
system control mode: Soft mannual & Full- Automatic
open/close Door way: pneumatic revolve door
door qty: one
data record way: continuous interval mode , warning triggered mode
historical curve record way: continuous time interval mode
data save time: customers copy and save by themselves
recirculated water connector: boht cabinet and door with one way in and one way out
circulation water jacket replacement time: <5 minutes
temperature sensor precision: display Range: 0-100℃;resolution: 0.1℃
temperature control precision: cabinet wall temperature difference within ±5℃
cabinet inside temperature difference is within ±3℃
pressure sensor precision: display Range : -100-+150Kpa，resolution: 0.1Kpa
vaccum control mode: continuous mode and stepping mode
vaccuming time: <30minutes from 0 to -90KPa
humidity sensor precision: display range: 0-100%RH(no-condensing) , resolution 0.1%RH
control time range: 0-99hours, sterilizing time resolution 1min
cabinet water volume auto detecting: yes ，system shows and controls the water volume and feeds water automaticly.
steam heating connector: no
steam detecting: yes, displaying and warning when the steam is not enough
vaccum pump detecting connector: no
steam pressure detecting connector: no
humidifing connector: yes ，humidifying automaticly by pulsatile mode
humidifying way: pressure difference or sensor
Nitrogen protection system connector: no
tail gas treatment connector: yes , auto control
in-door and out-door air exhausing connector: no
data record and dealing mode: Touch screen records data. To use U disk copy out data and use Data processing software to make historical curve and data reporter .
over high temperature limit protection: yes
over high pressure limit protection: yes
EO under low temperature limit protection: yes.
